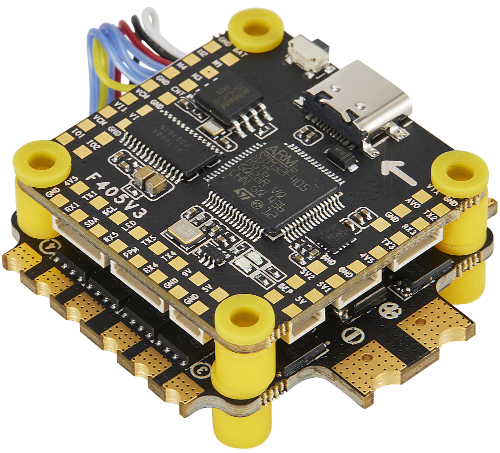

RFFS-F405-50A Stack

Features:

* The Stack adopts the extremely stable ICM-42688-P gyroscope;

* The Stack main control chip adopts F405 chip, and the serial port supports up to 4 groups, with fast operation speed and smoother control;

* It can be quickly connected to the camera/receiver/image transmission/LED/GPS through the socket, no welding required;

* Maximum support for BEC 9V2A/BEC 5V2.5A, which can provide stable voltage and current output to external devices;

* Immersion gold high-tech design is temperature-resistant and current-resistant, the ESC has a large pad, and the flight controller is directly plugged in, so there is no trouble in welding;

* Onboard galvanometer module, real-time viewing of data such as current feedback through the Stack;

Specs Overview:

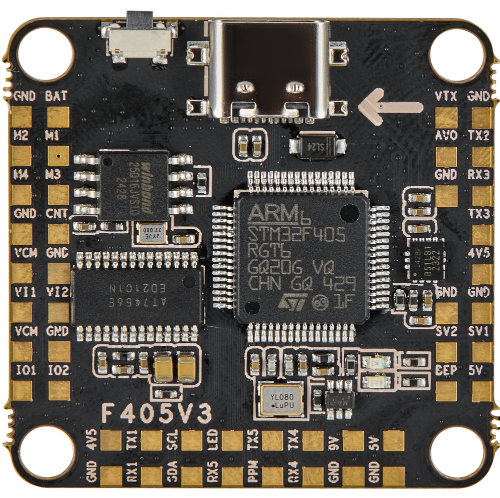

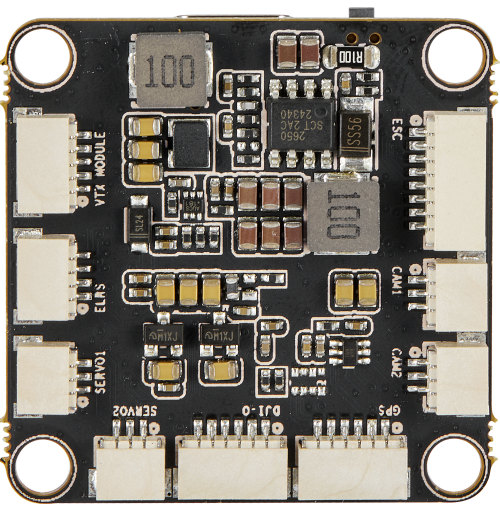

① RFFC-F405 Flight Controller x 1

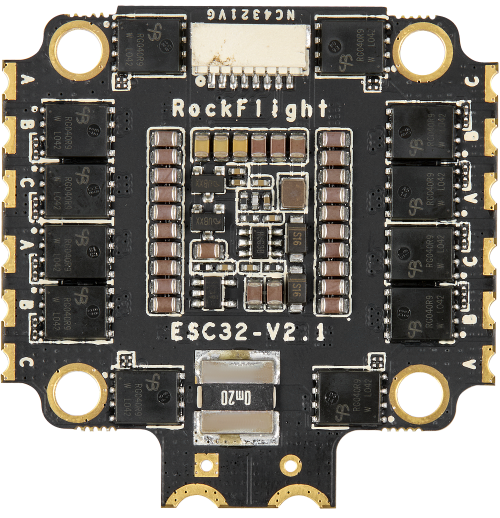

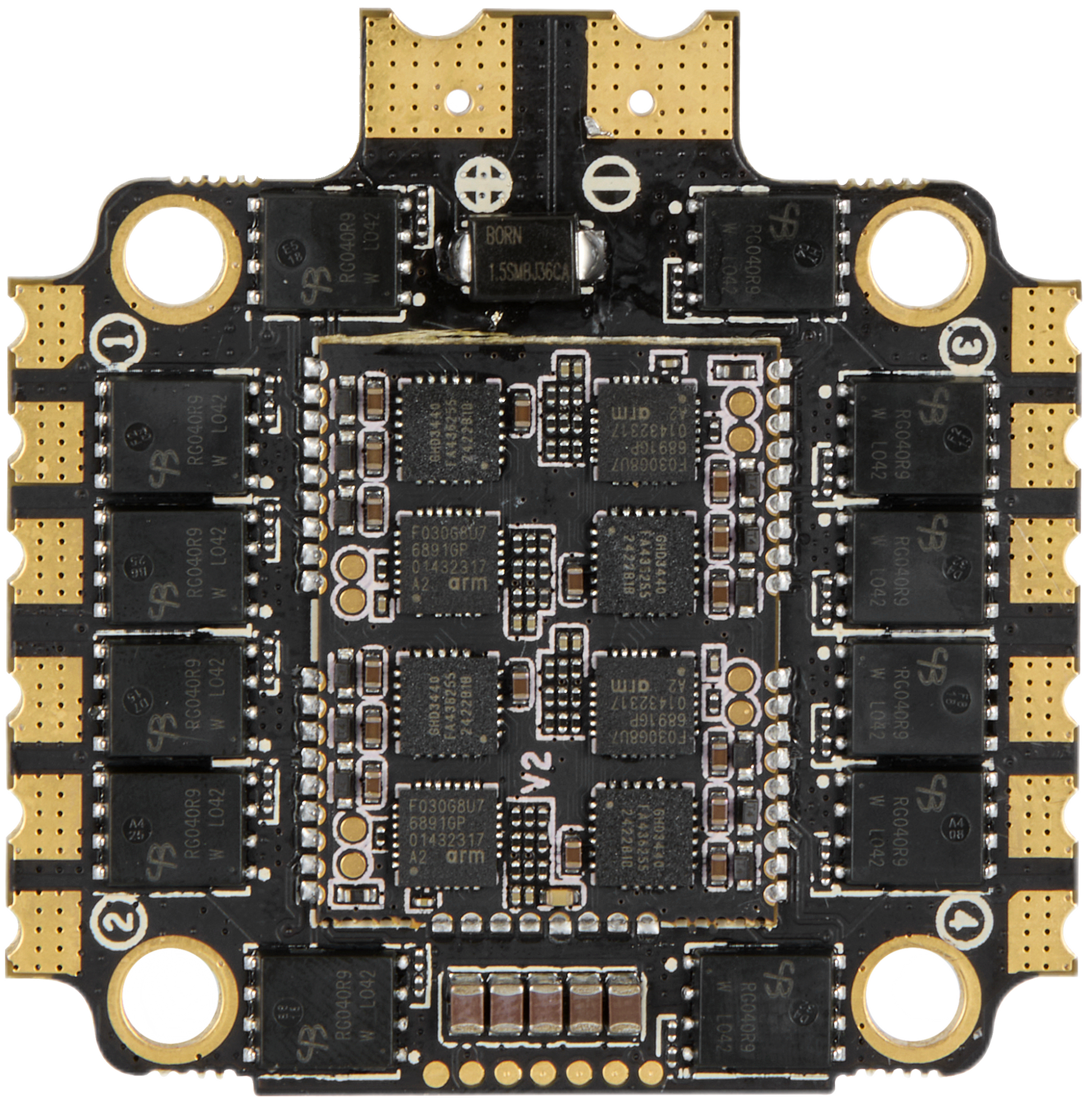

② RFESC-50A ESC x 1

③ 50V 470uF Solid-State Capacitors x 1

④ M3 Nylon Nut x 4

⑤ M3*8mm Silicone Grommets(for FC) x 4

⑥ M3*8.1mm Silicone Grommets(for ESC) x 4

⑦ SH 1.0mm 8pin 15mm Cable(for FC-ESC connection) x 1

⑧ M3*30mm hexagon socket Screws x 4

⑨ DJI 6pin Cable(80mm) x 1

⑩ XT60 Power Cable(70mm) x 1
